2022 Diamond C 7×24 20K Low Profile Equipment Trailer for Sale

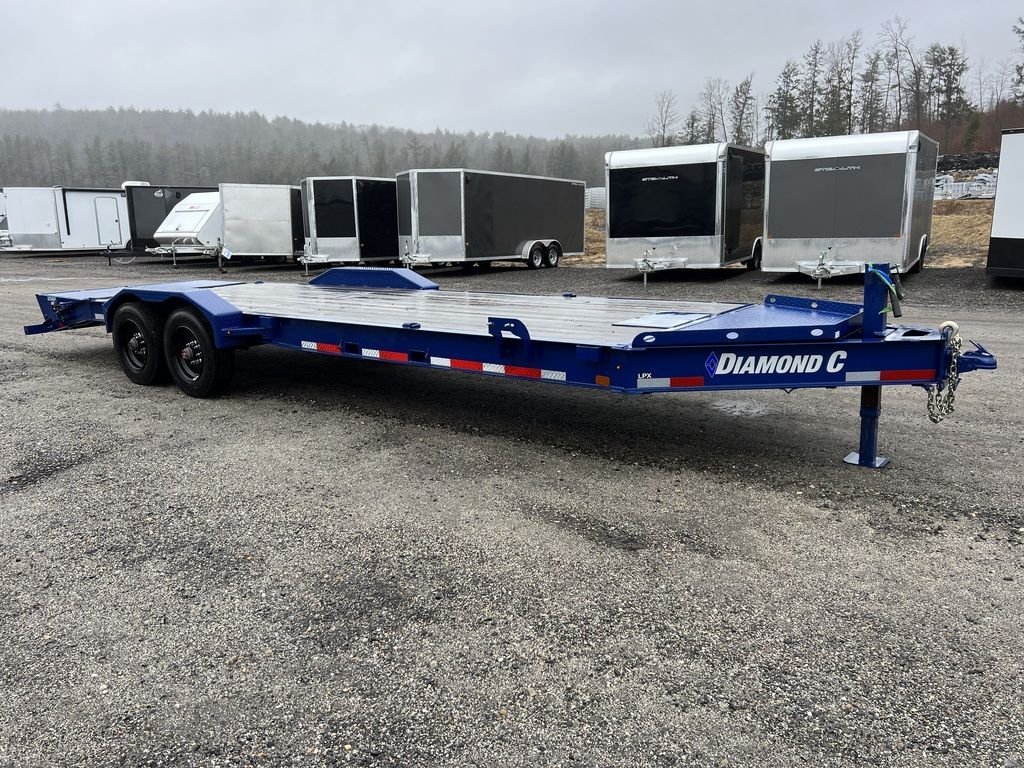

This pre-owned 2022 Diamond C 7×24 low profile equipment trailer pairs a 20,000 lb. GVWR with an impressive 15,620 lb. payload, making it a favorite for hauling skid steers, tractors, and compact machinery. The low-profile engineered beam frame drops the deck height for an easier, safer loading angle, and this metallic blue equipment trailer arrives loaded with Max Ramps, a winch plate, and heavy-duty tie-downs.
Low Profile, Easy Loading

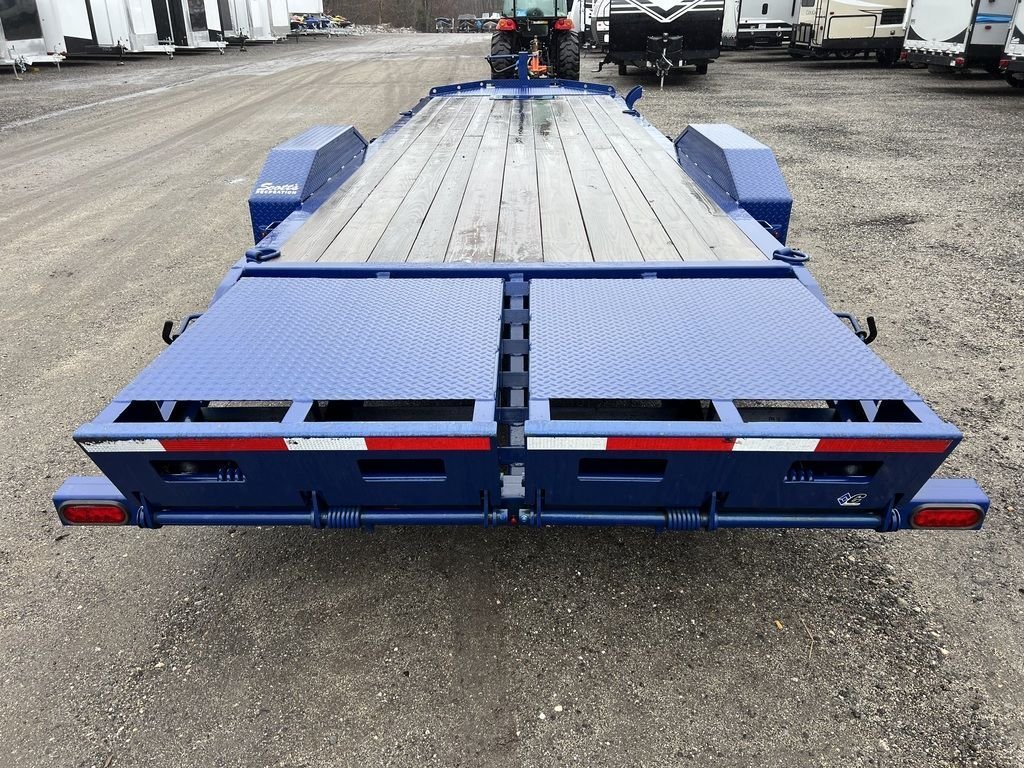

Diamond C’s engineered beam frame with a tongue integral to the frame keeps the deck lower to the ground, which shortens the ramp angle and takes the stress out of loading low-clearance equipment. The 36” self-cleaning dovetail with Max Ramps drops debris as you drive, so mud and gravel do not build up on the ramps between jobs.
Ready to Work
A winch mounting plate lets you power-load disabled or non-running equipment, while the HD V-tongue storage box with lid and fork holder keeps your chains, binders, and forks organized and secure. Six stake pockets and four 5/8” D-rings give you plenty of anchor points to tie down any load properly.
Specifications
- Year: 2022 | Make: Diamond C | Model: LPX210L24X82 | Color: Metallic Blue | Condition: Pre-Owned

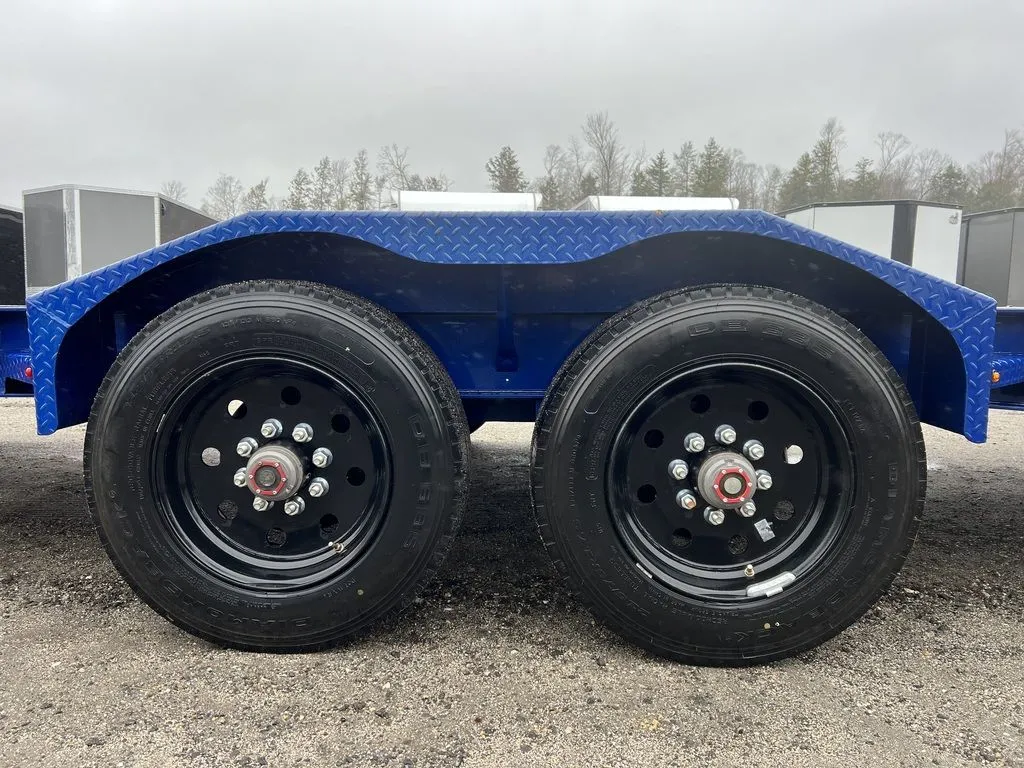

- Two 10K torsion straight axles with 10K electric drum brakes
- 3” I-beam on 12” centers with engineered beam frame
- 3/16” diamond plate fenders and treated decking

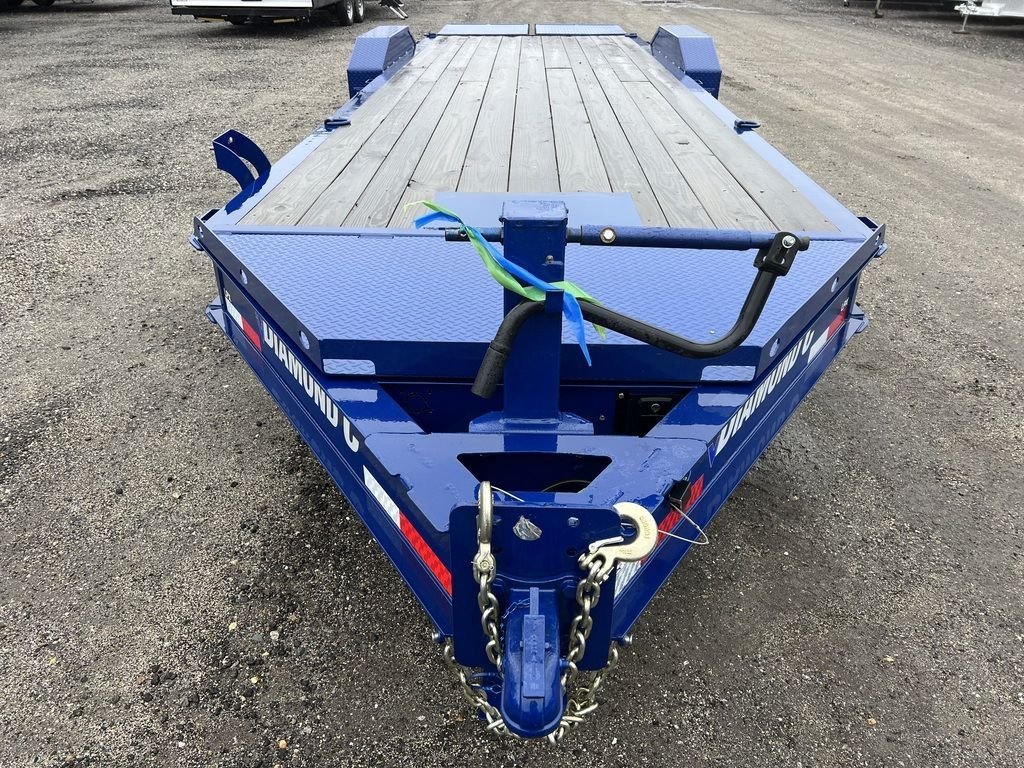

- 20K flat-mount coupler with tongue integral to the frame

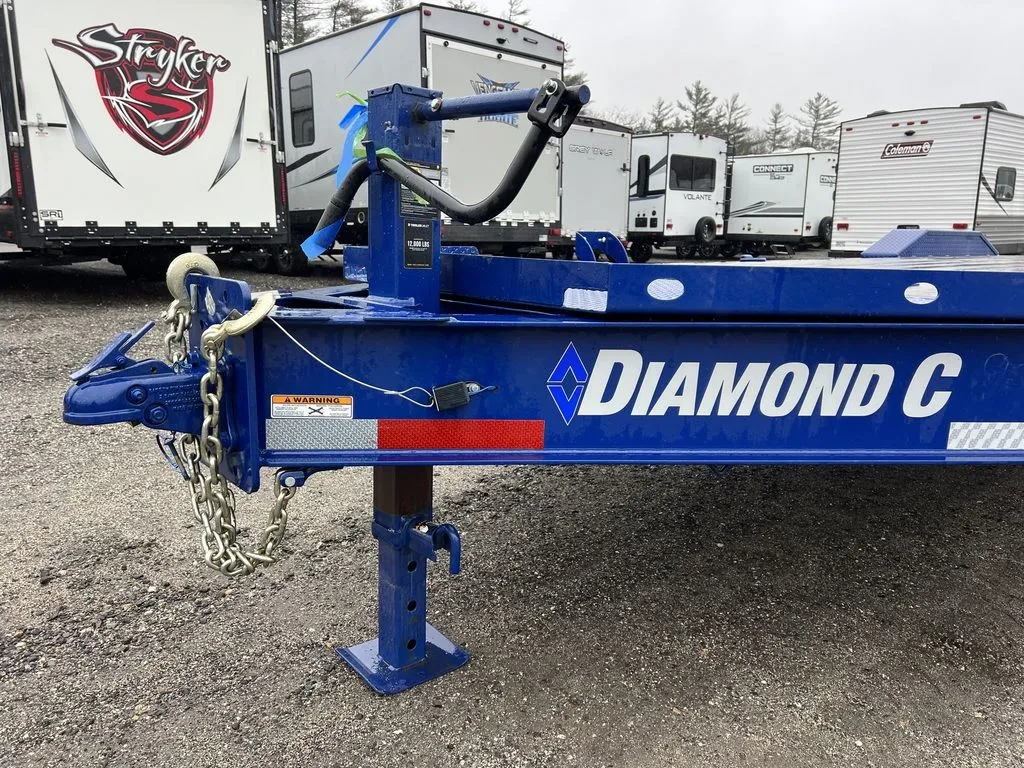

- 12K drop-leg jack and spare tire mount

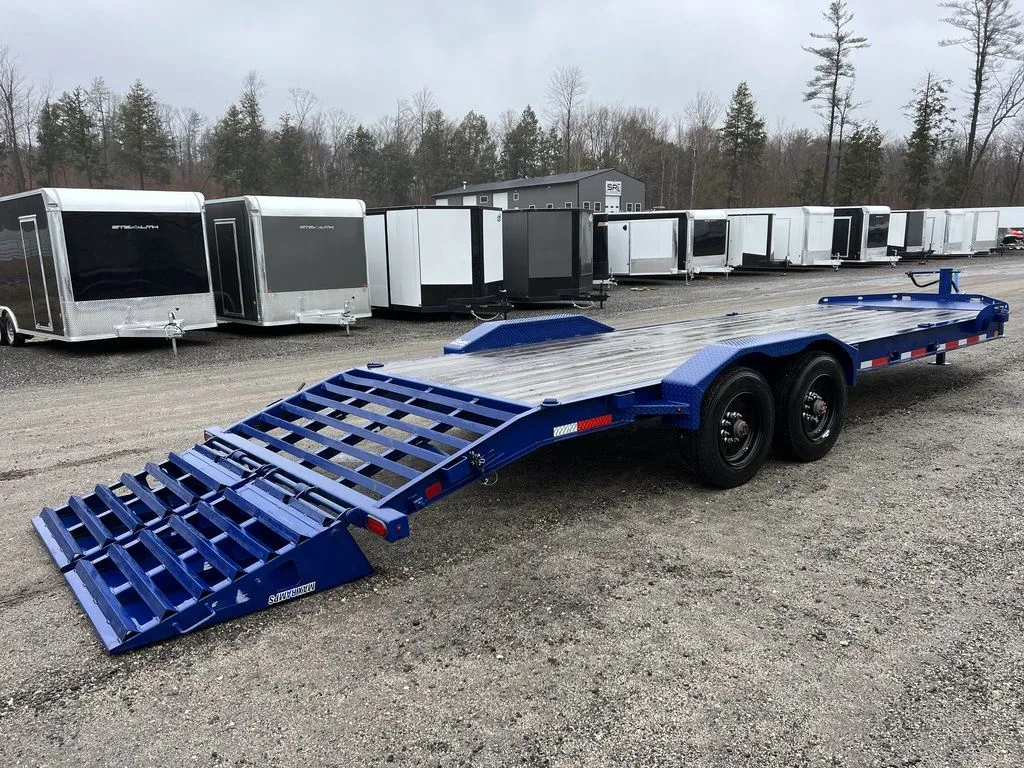

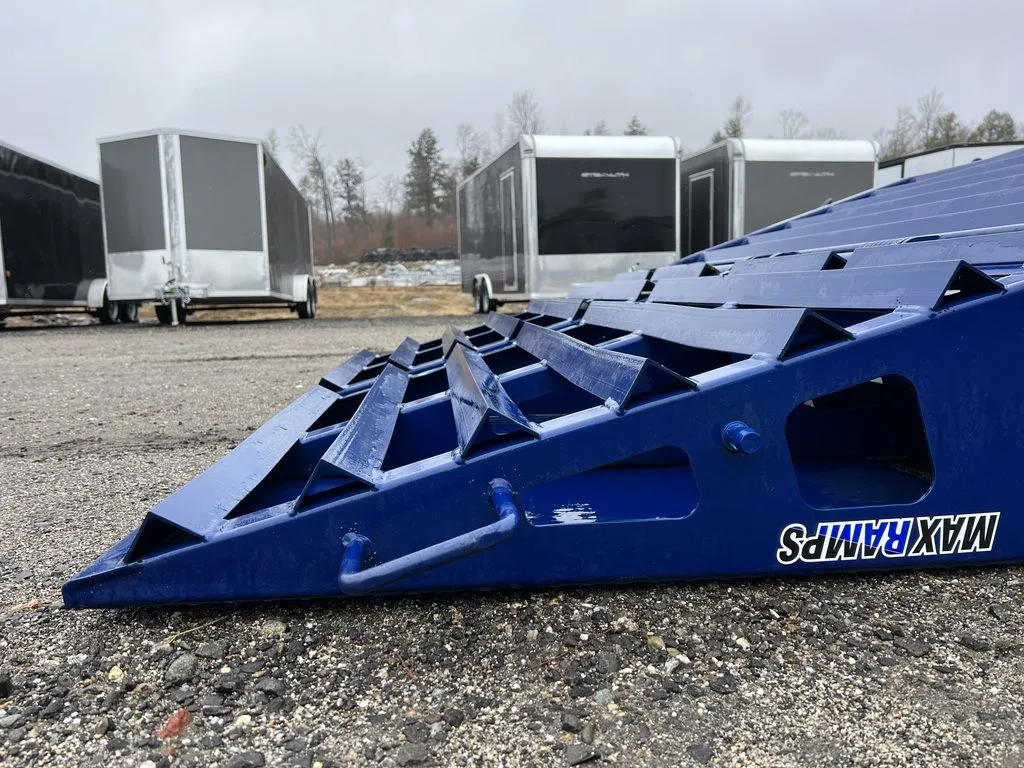

- 36” self-cleaning dovetail with Max Ramps
- Six standard stake pockets and four 5/8” D-rings

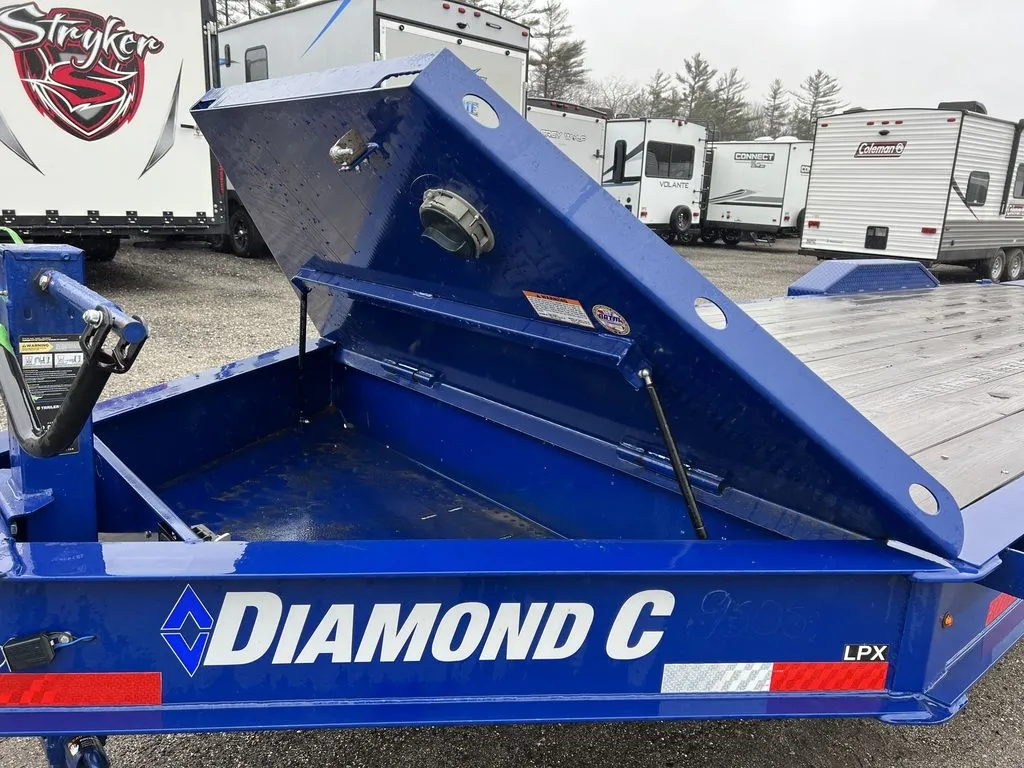

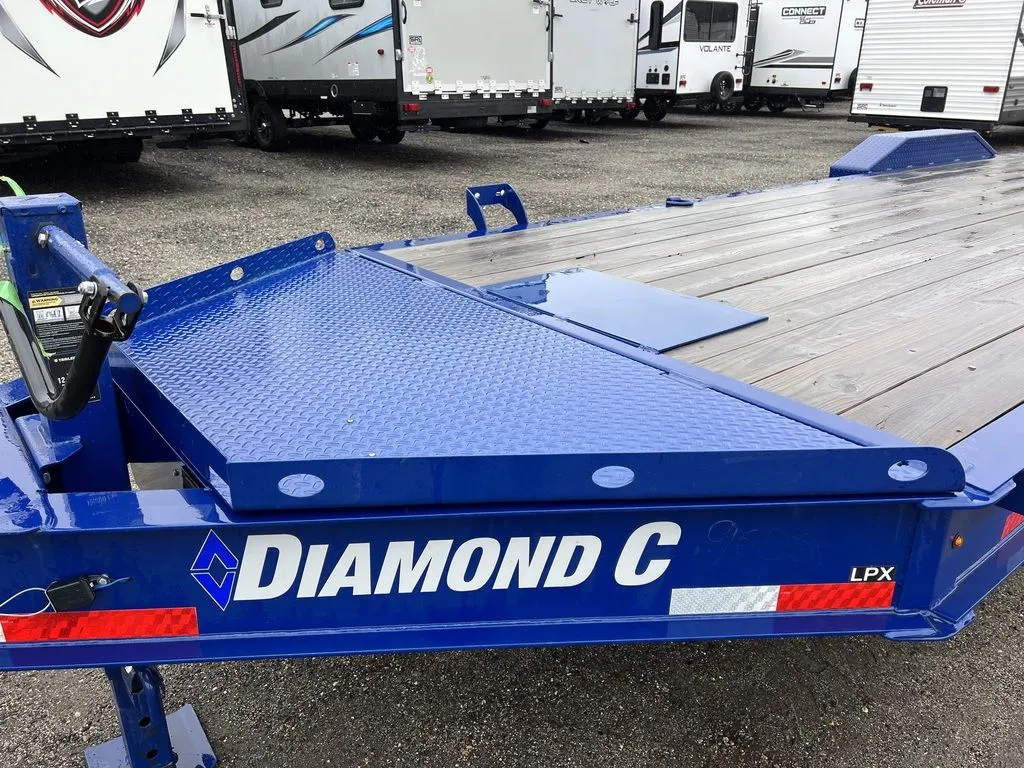

- HD V-tongue storage box with lid, fork holder, and winch mounting plate
- Steel black wheels with all-LED lighting
- GVWR: 20,000 lbs. | EVW: 4,380 lbs. | Payload: 15,620 lbs.
When buying a used equipment trailer, confirm the payload covers your loaded machine, check the torsion axles, brakes, and ramp condition, and be sure your tow vehicle and hitch are rated for a 20K bumper-pull. The low-profile deck is especially helpful for loading forklifts and low-slung attachments.
See this Diamond C in person or let us deliver nationwide from Marietta, Ohio. Request a quote today and get this low profile equipment trailer working for you.
