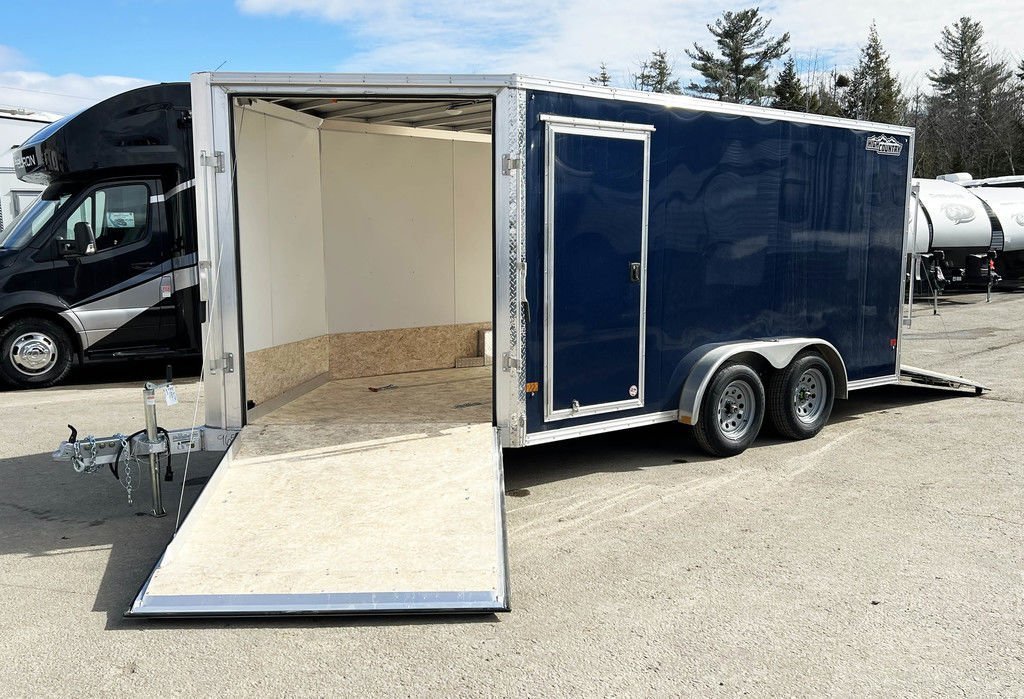

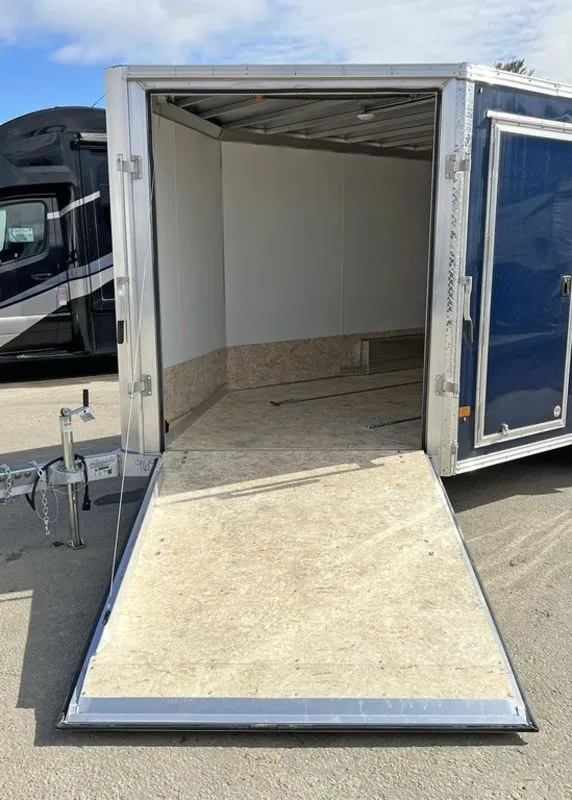

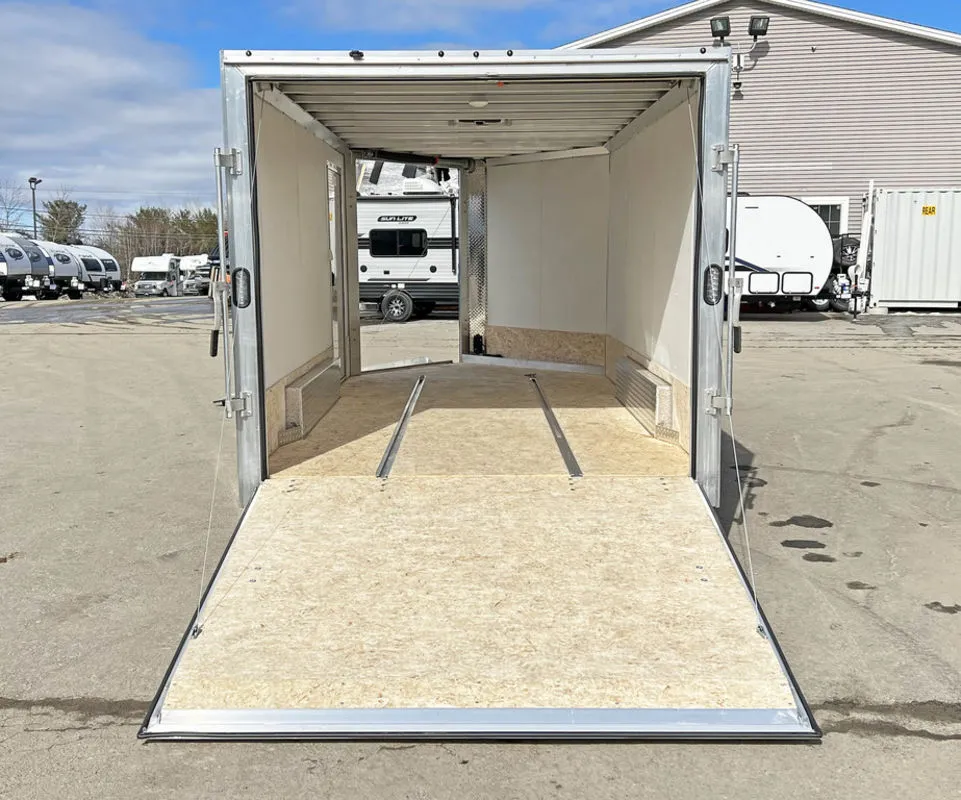

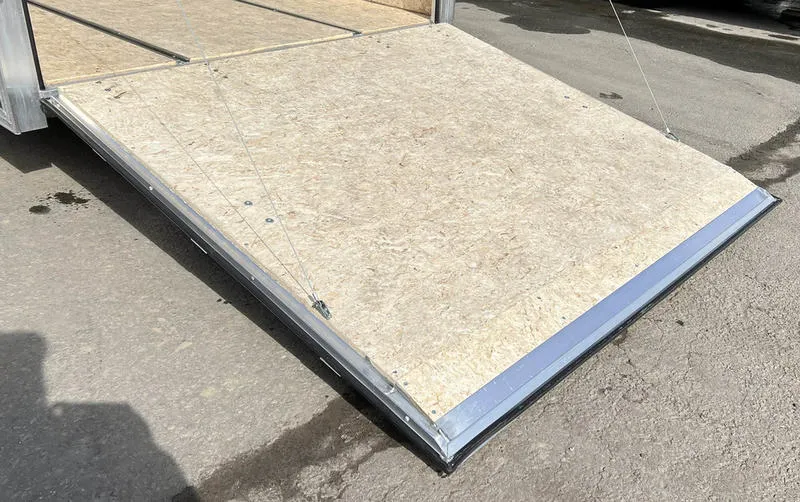

Tapered ramp doors at both ends. That is the feature, and if you have ever tried to turn a sled around inside a 14-foot box you know why it matters. Load from the back, unload out the front, never reverse a machine in a confined space with the track spinning on aluminum.
Aluminum on salted roads

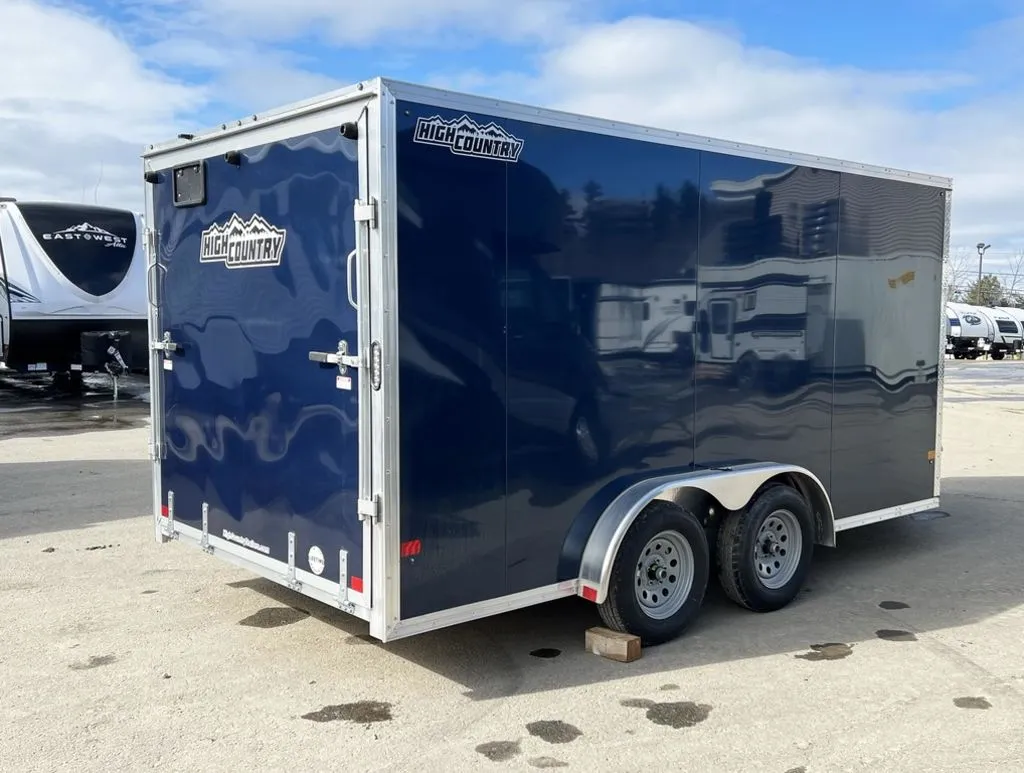

Snowmobile trailers spend their working life on roads that have been salted twice a day since November. Aluminum does not care. At 1,775 pounds dry with a 6,000 lb GVWR, this High Country also gives you 4,225 pounds of payload, which is comfortable room for two or three machines plus fuel, gear and a shovel.
The box

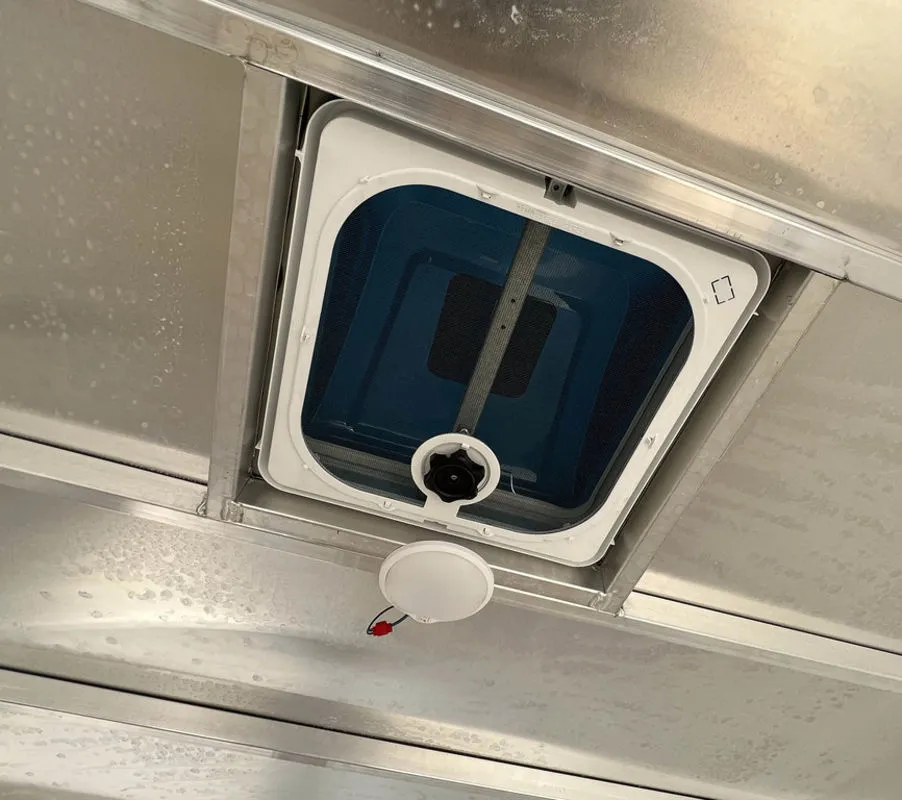

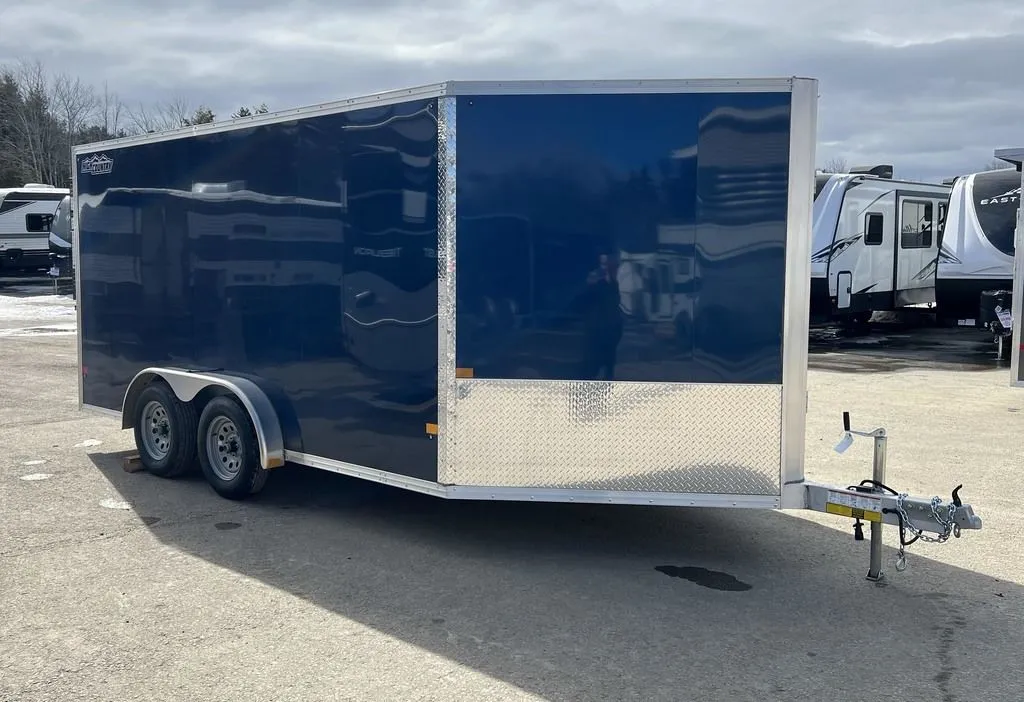

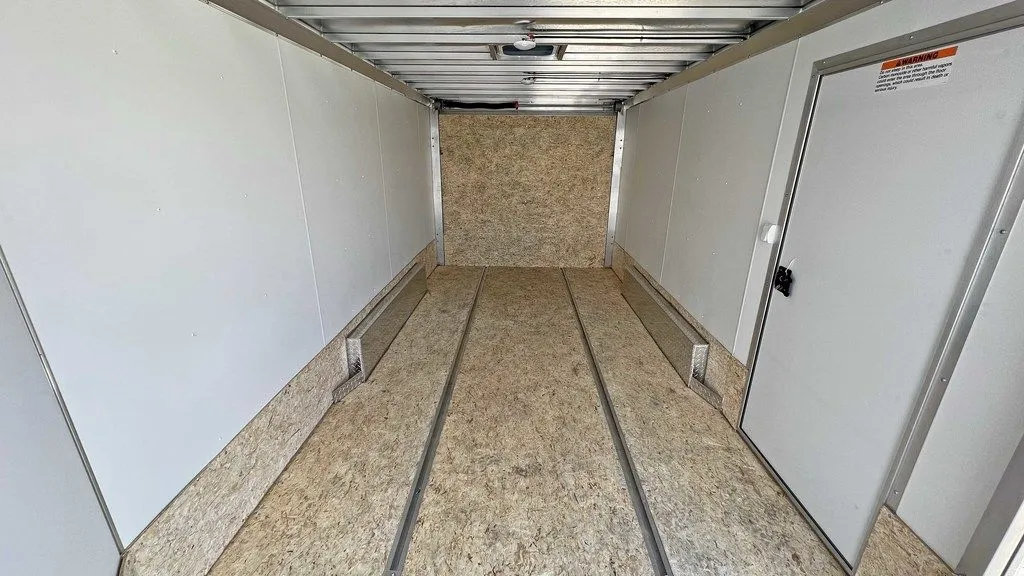

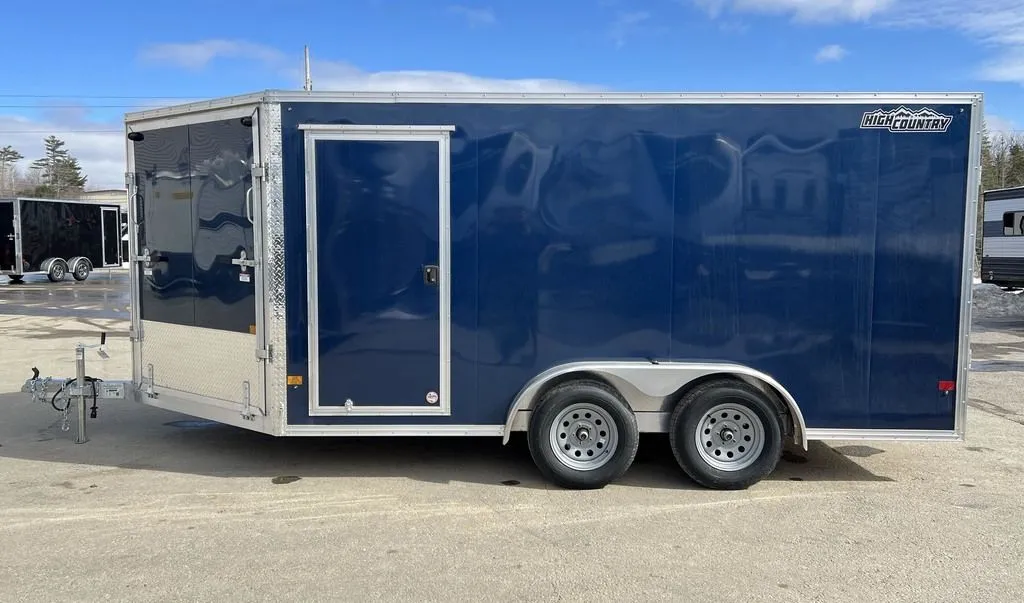

Fourteen feet of box plus a 55-inch V-nose. Interior height is 76 inches, the rear opening is 80 by 72 inches and the front opening is 55.5 by 72. Measure a tall sled with a raised windshield before you commit. Inside there are white interior walls, three dome lights on a wall switch and a roof vent, so the box stays bright and moisture has somewhere to go instead of freezing on the ceiling.
Tie-down and structure

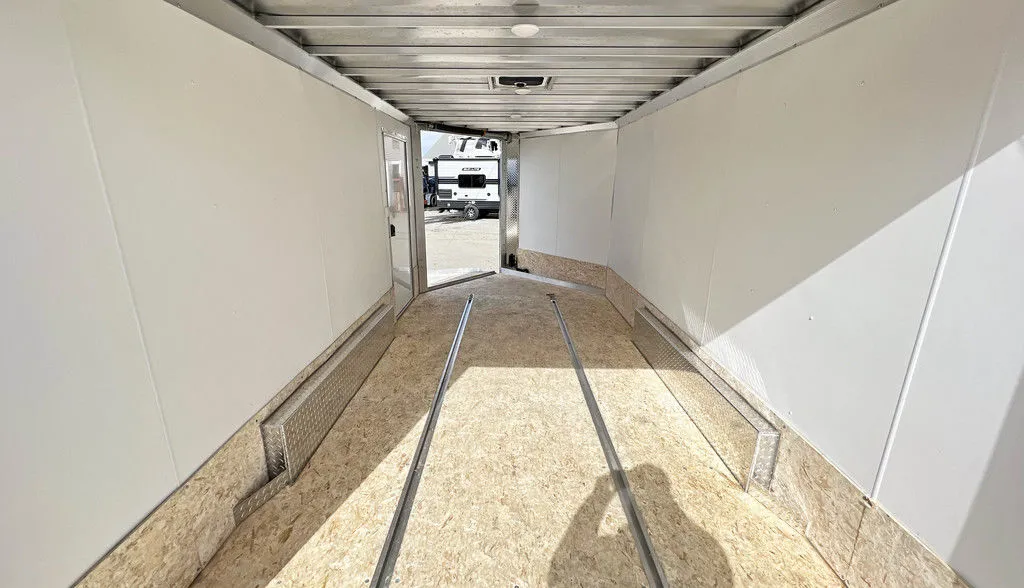

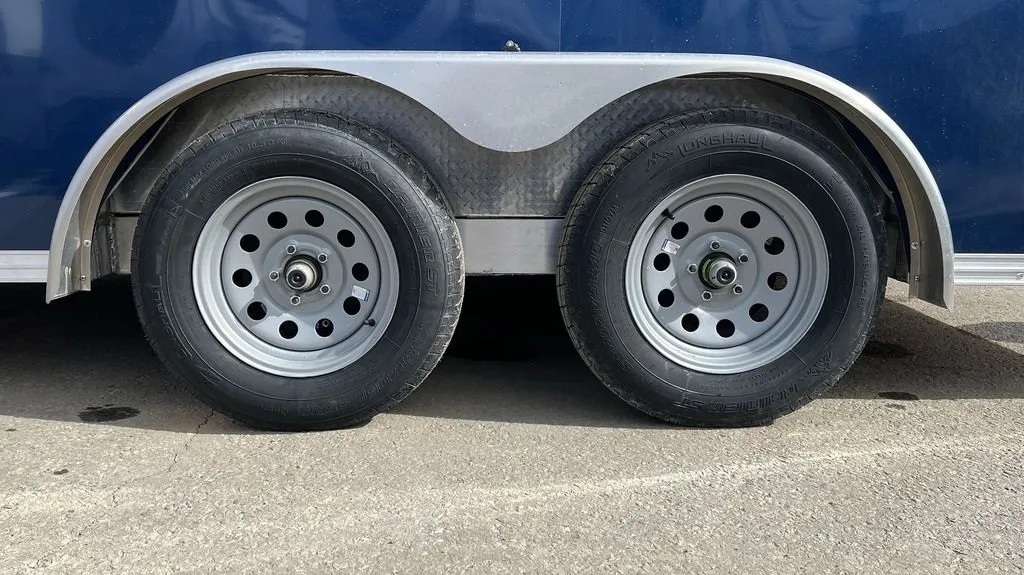

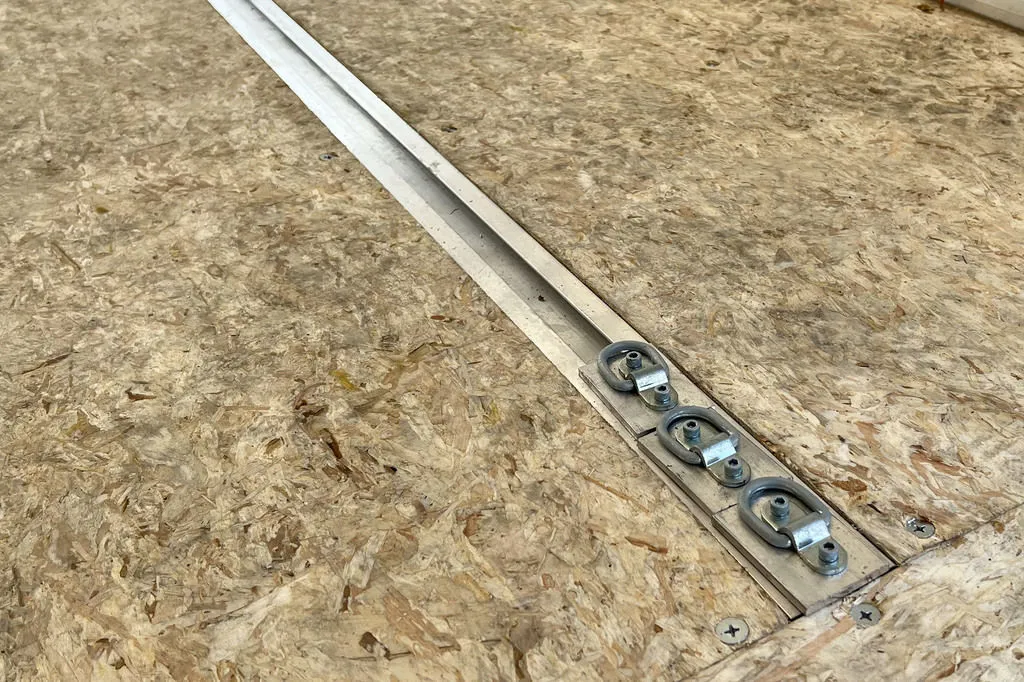

A full-length slide track with four sliding D-rings, so tie-down points move to the machine rather than the machine moving to them. Two 3K torsion braked axles on 15-inch mod wheels. Wall and roof studs on 16-inch centers, floor crossmembers on 24-inch centers, 2×5 subframe tubing, 3/4-inch decking, a 24-inch stoneguard and a 12-inch kickplate.
| Box | 14 ft plus 55 in V-nose |
|---|---|
| Interior height | 76 in |

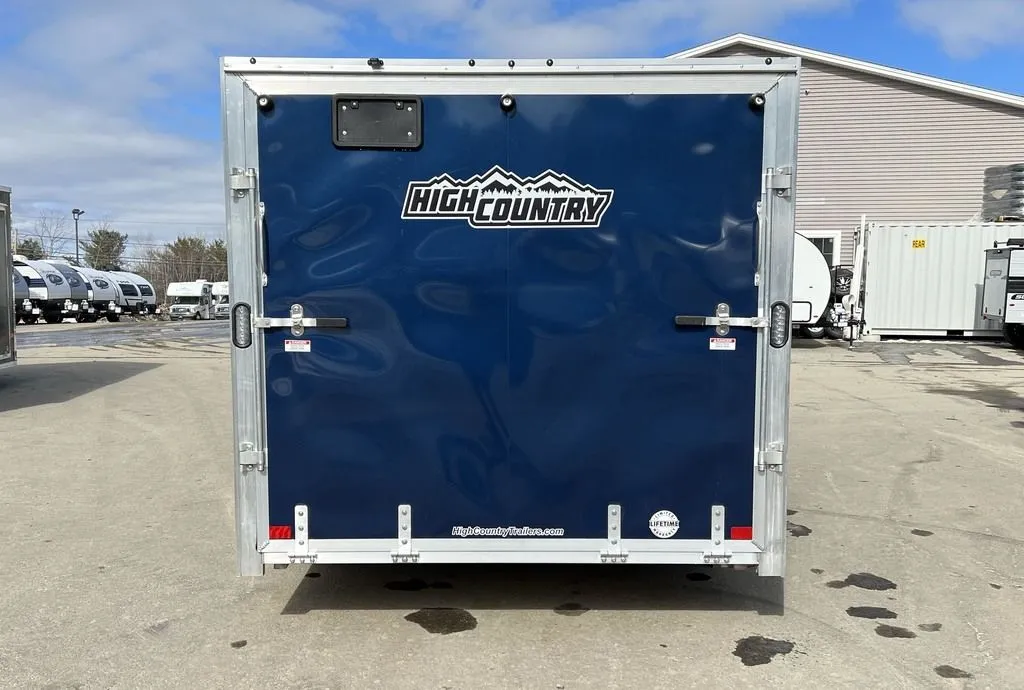

| Rear opening | 80 in W x 72 in H |

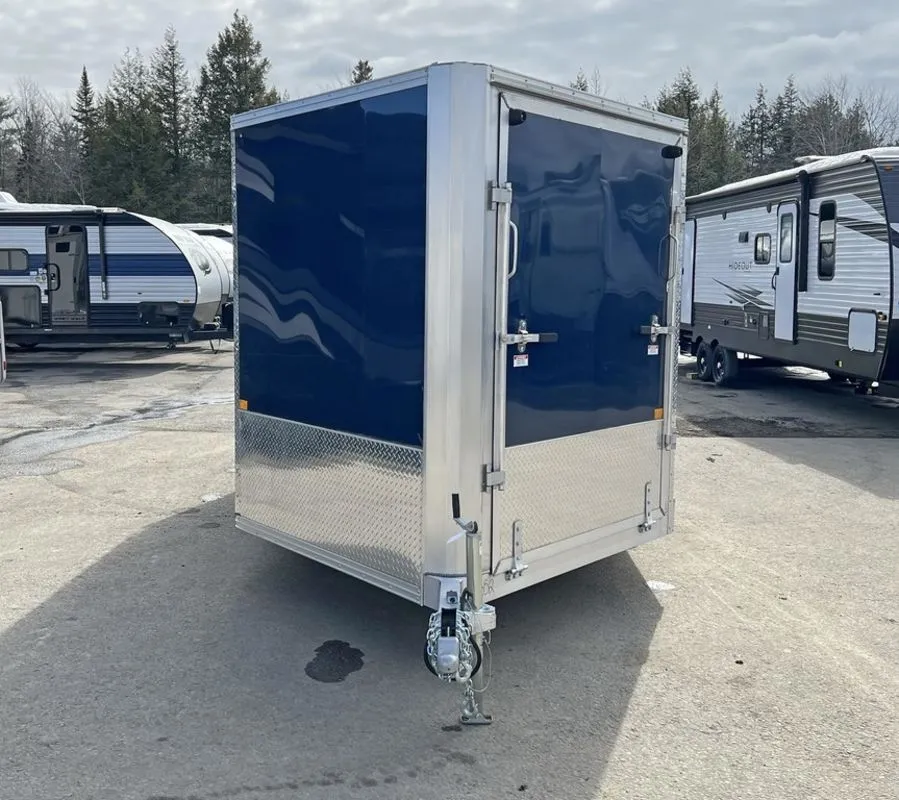

| Front opening | 55.5 in W x 72 in H |
| Axles | Two 3K torsion, braked |

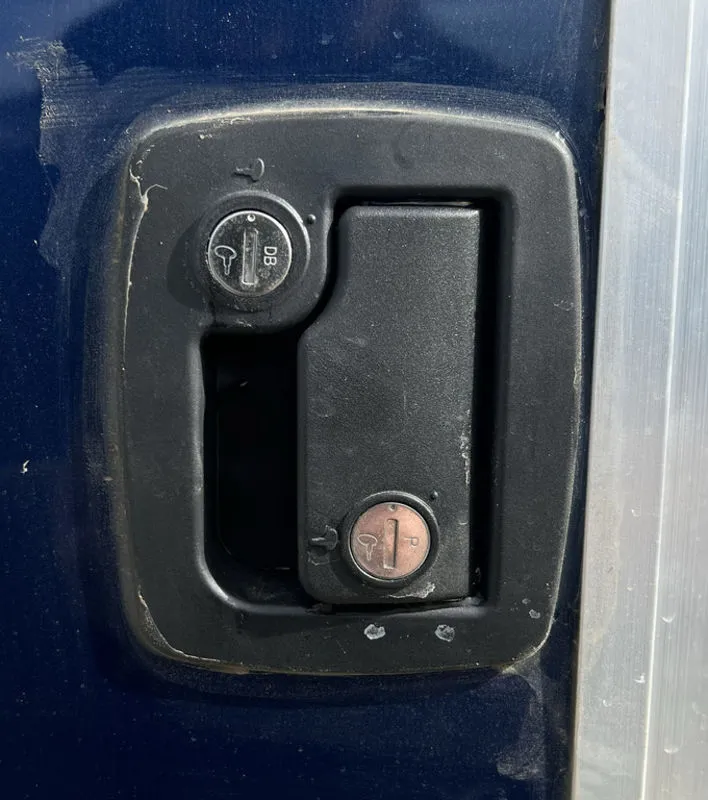

| Side door | 32 in x 66 in with paddle handle |
| Tie-downs | Full-length slide track, four sliding D-rings |
| Dry weight | 1,775 lbs |
| GVWR | 6,000 lbs |
| Payload | 4,225 lbs |
Match the 2-inch straight-pull coupler to your hitch. Flat $550 freight to the continental US and 30 days to return from delivery.
