2024 Diamond C 8.5×20 20K Deckover Equipment Trailer for Sale

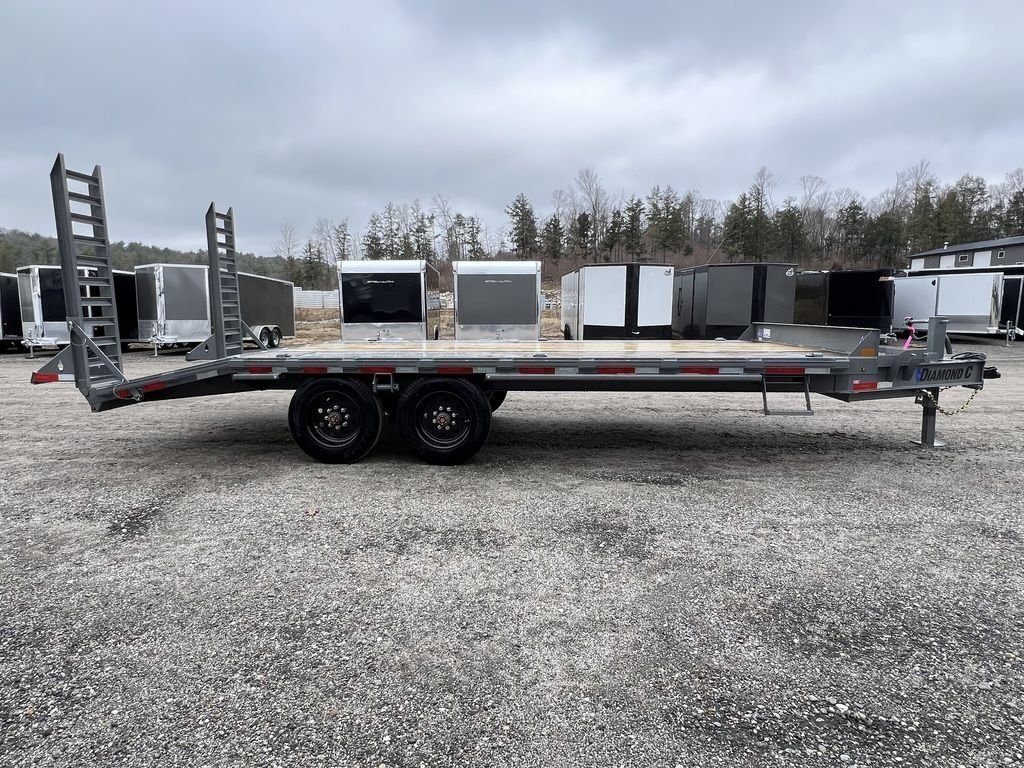

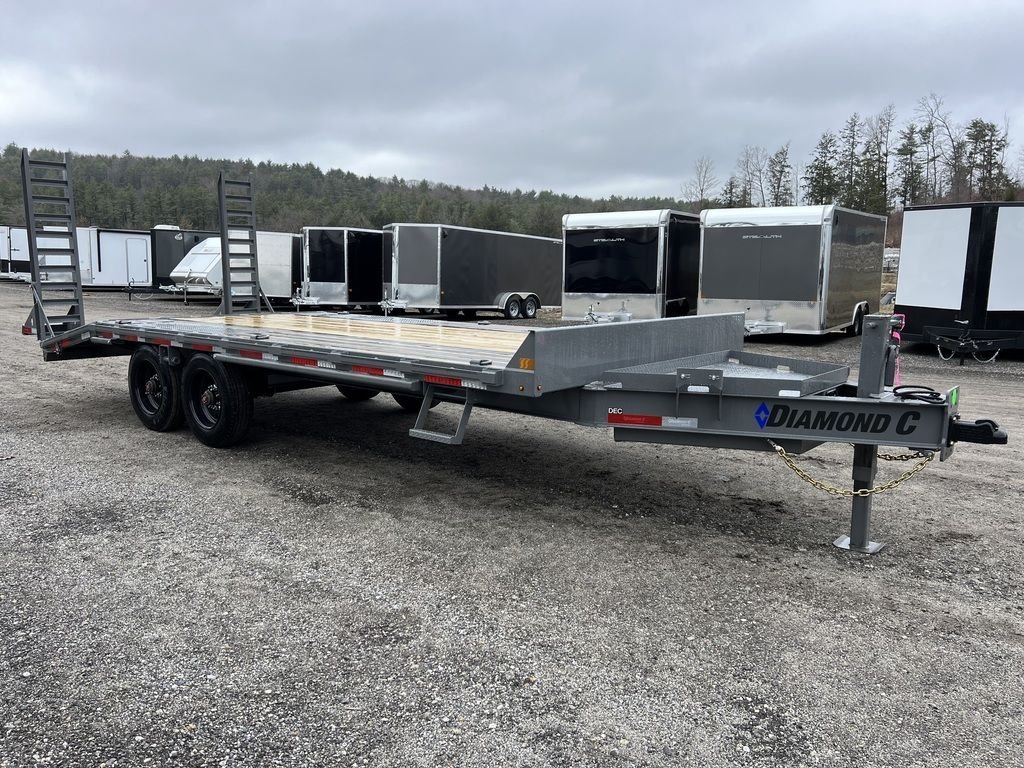

When your loads get serious, this new 2024 Diamond C 8.5×20 20K deckover equipment trailer (model DEC21020X102) steps up with a 20,000 lb GVWR and a heavy-duty build meant for skid steers, mini excavators, tractors, and other rolling equipment. The Cement Grey finish, 48″ dovetail, and 72″ flip-knee ramps make this heavy equipment trailer a workhorse for contractors, excavation crews, and rental fleets.
Engineered for Heavy Machinery
The flip-knee ramps create a lower, gentler load angle so low-clearance machines climb on without scraping, while the 48″ dovetail smooths the transition onto the deck. Torsion straight-axle suspension and self-adjusting electric brakes keep heavy payloads planted and stopping straight, and the welded ratchet on the slide track plus six 5/8″ D-rings lock equipment down tight.
Specifications
- Year: 2024, Make: Diamond C, Model DEC21020X102, Cement Grey, New condition

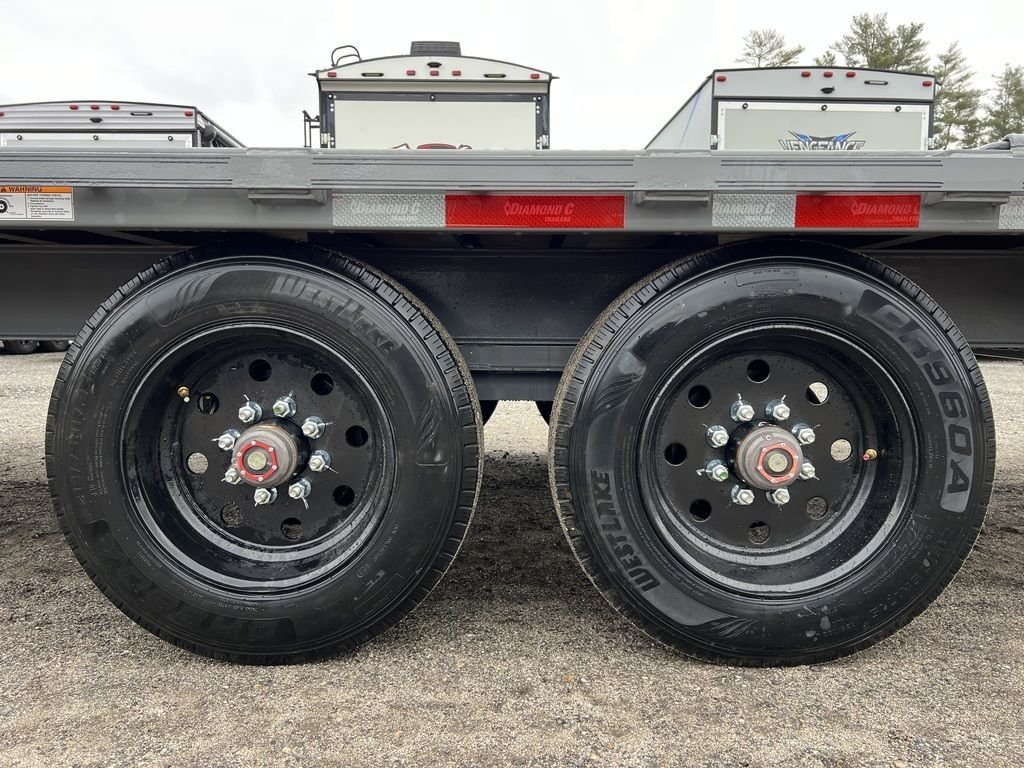

- Two 10K Super Lube self-adjust electric brake axles, 10K Torsion straight-axle suspension

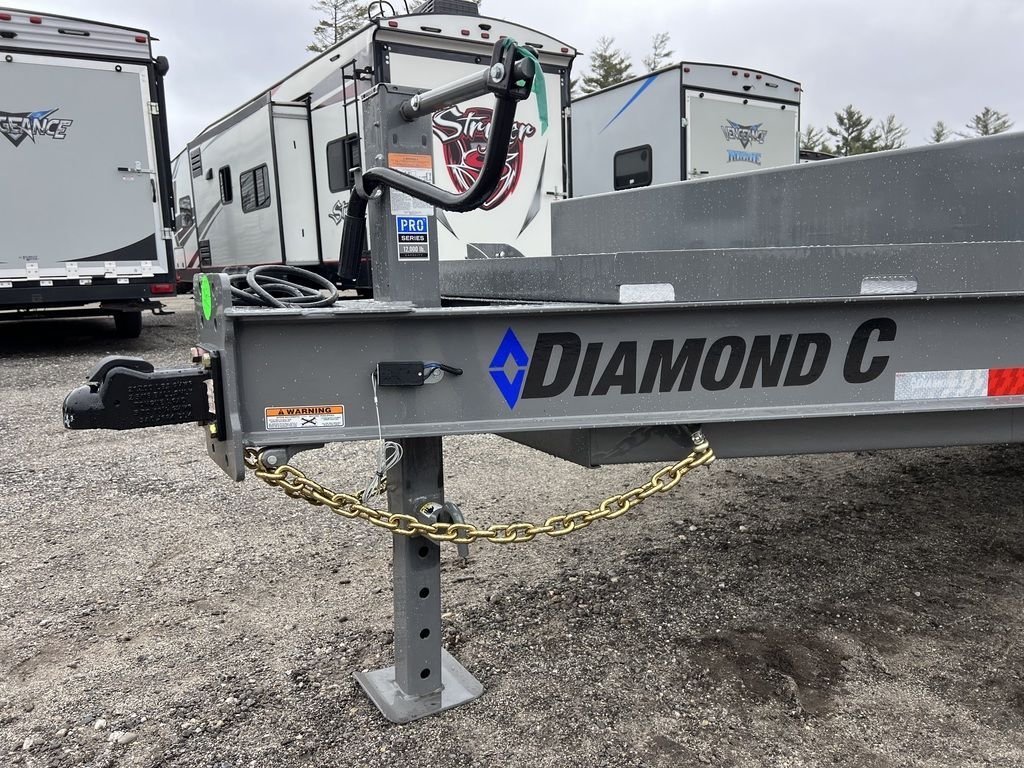

- 2-5/16″ – 21,000 lb Demco EZ-Latch flat-mount coupler
- 8″ x 15 lb I-beam tongue integral with frame, 3″ I-beam crossmembers on 16″ centers

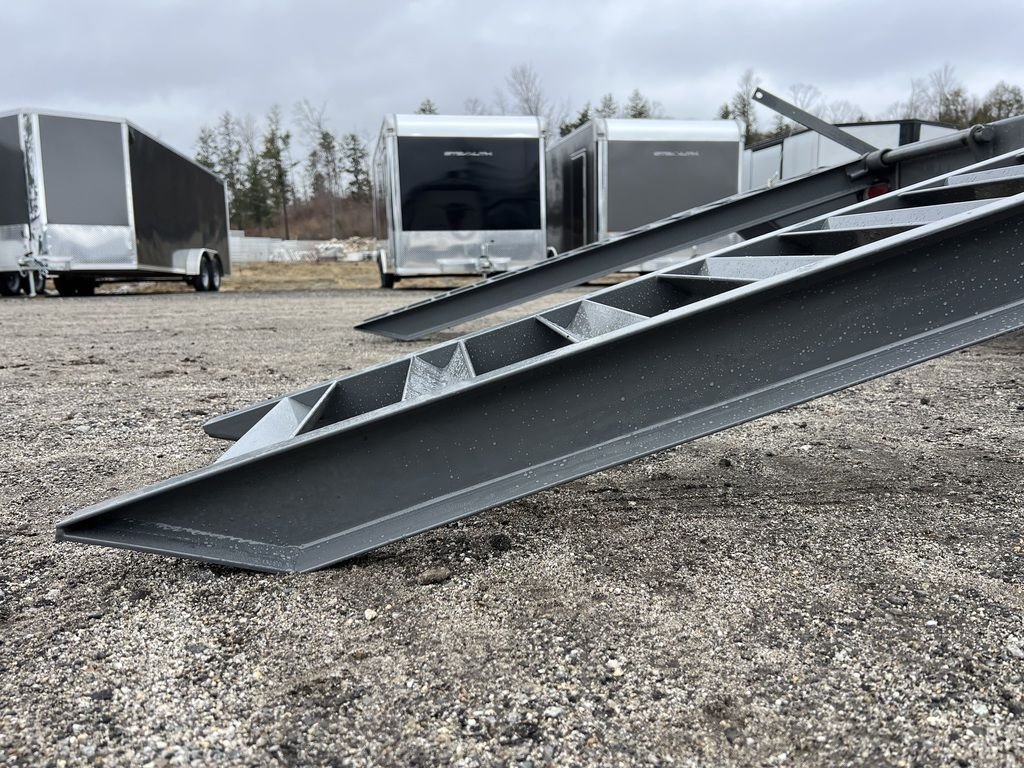

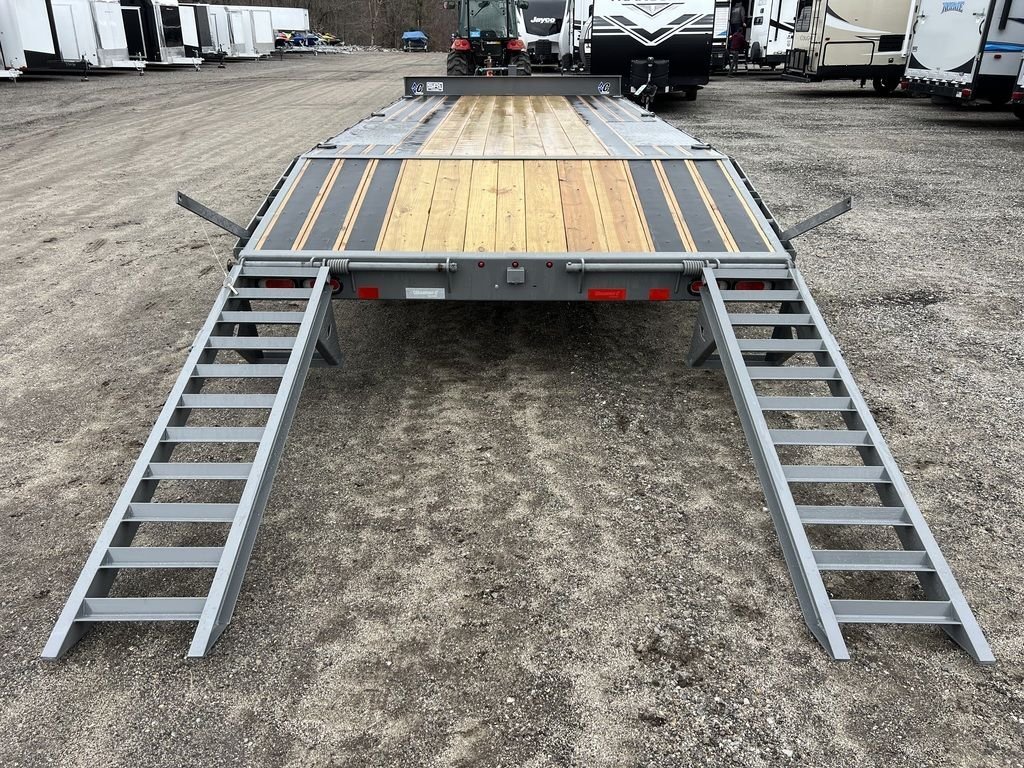

- 48″ dovetail with 72″ flip-knee ramps, slide track with one welded ratchet
- 12,000 lb drop-leg jack, 3/8″ rub rail with stake pockets and pipe spools
- 2″ treated decking with Blackwood outer decking, ST215/75R17.5 radial tires

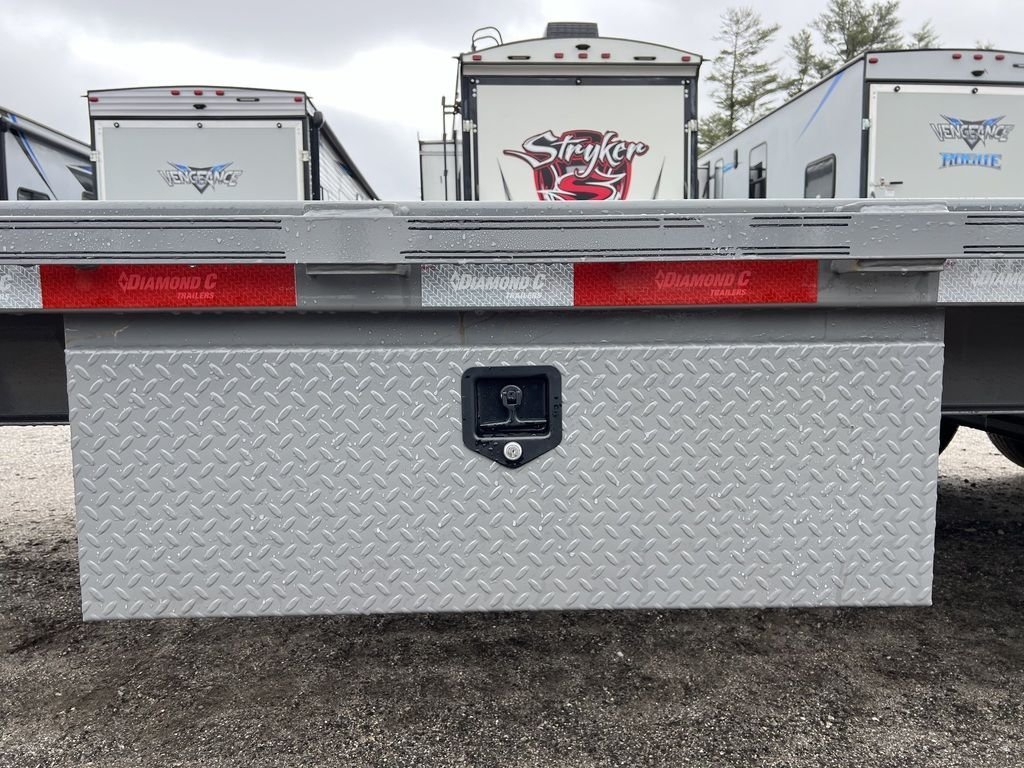

- 12″ formed bumper, lace rail, front retractable steps, 14″x14″x42″ underslung box, all LED lights

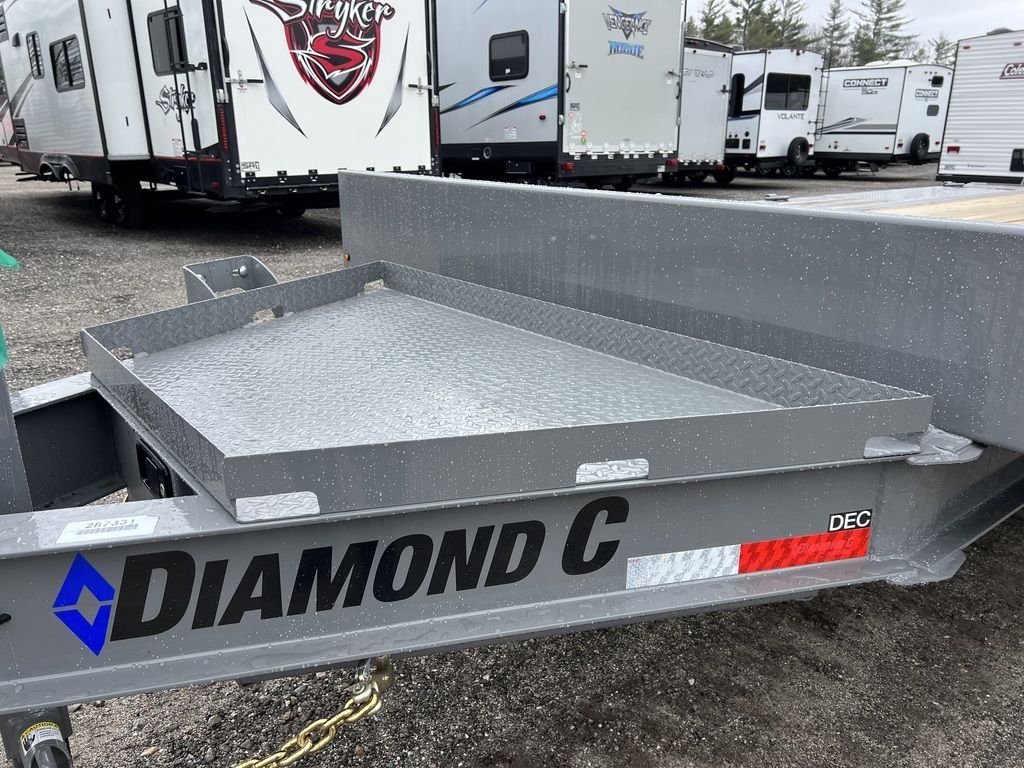

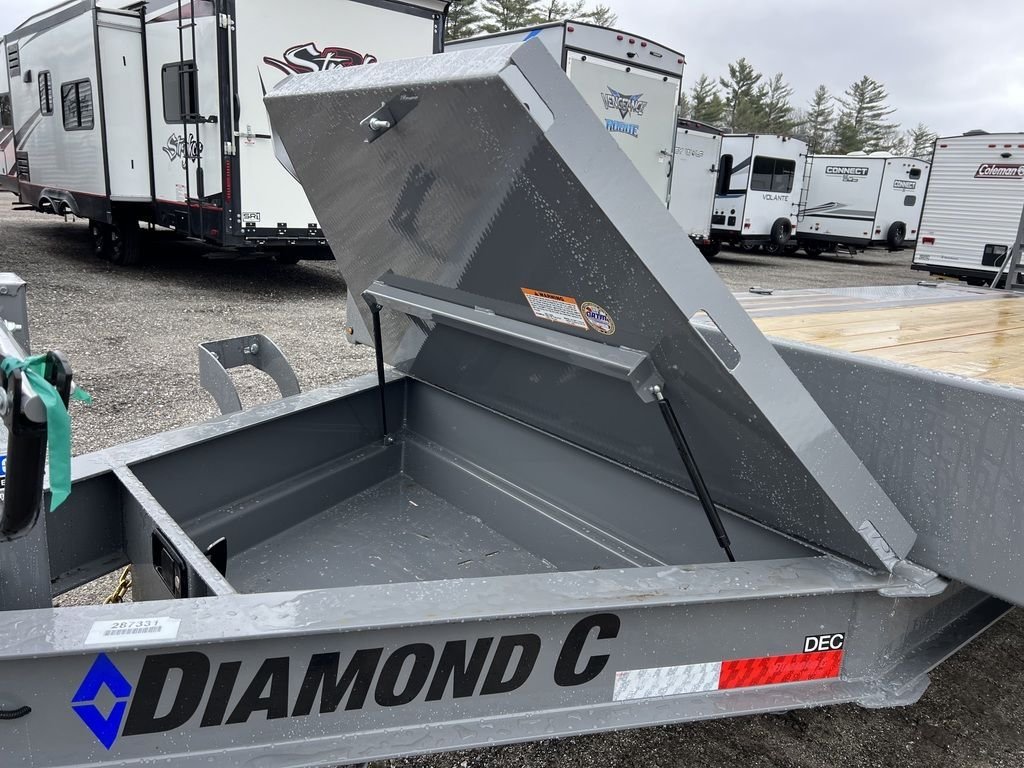

- Added options: V-tongue storage with lid, spare mount, six 5/8″ D-rings
- GVWR: 20,000 lbs — EVW: 4,630 lbs — Payload: 15,370 lbs
With a 20K GVWR and roughly 15,370 lbs of payload capacity, this trailer is sized for full-size compact equipment — always confirm your machine’s operating weight sits within that figure and that your truck is rated to tow a gooseneck-class load with a 2-5/16″ coupler. Inspect the ramps, brakes, and tie-down points before your first haul.
See it in person or arrange a full inspection, and we deliver nationwide from Marietta, Ohio. Contact West Container Sales to request a quote on this heavy-duty equipment trailer.
