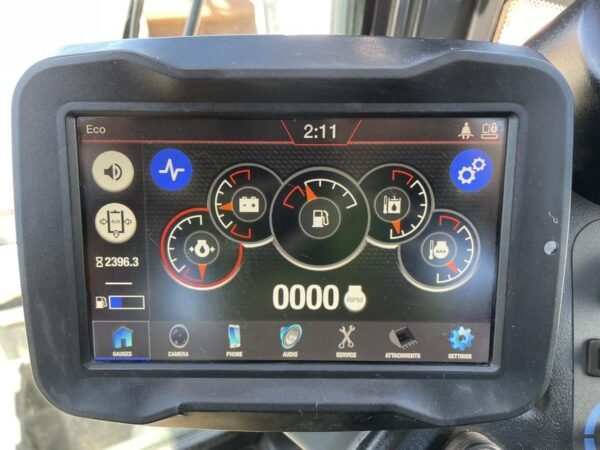

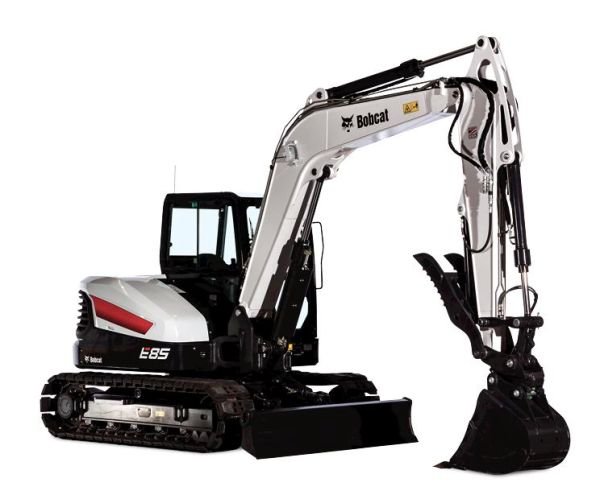

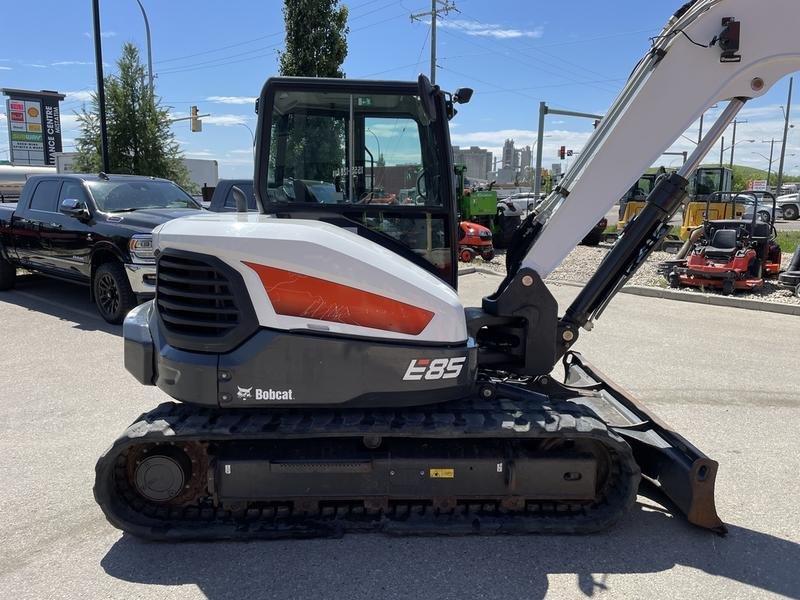

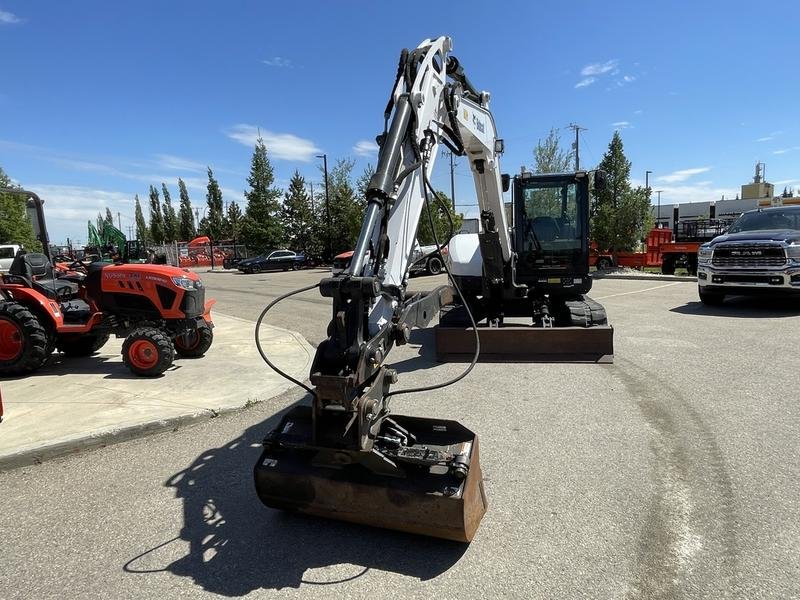

2,394 hours on a 2020 E85. That is low for a five-year-old 8.6-ton excavator, and it is the reason this one is worth a look.
The E85 sits in the class most contractors settle on when a 5-ton machine keeps running out of reach and a 13-ton machine is more truck than the job justifies. It digs to 4.7 m, reaches 7.2 m at ground level and dumps at 5 m. Bucket digging force is 72,368 N with 36,711 N at the arm.
Hydraulics and travel
Standard auxiliary flow is 95 l/min at 209.95 bar, which covers a breaker or a mulching head in this weight class. Two travel speeds, 4.7 km/h high and 2.7 km/h low. The boom swings 64 degrees left and 61 right, so you can work tight to a wall on one side without moving the tracks.

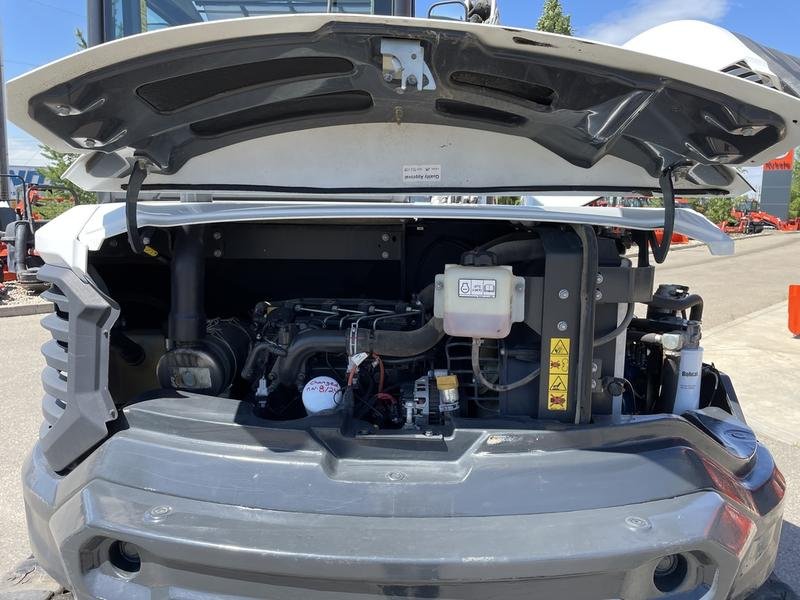

Fuel tank holds 115.8 liters. The Tier 4 engine is rated 49.1 kW with a governed maximum of 2,100 rpm. Rated hitch lift capacity is 4,424 kg. Stock number on the unit is E413714.
Transport
2,210 mm wide, 6,248 mm long in travel position and 2,535 mm to the top of the cab, at 8,608 kg operating weight. At close to 19,000 lb it wants a gooseneck equipment trailer and a truck rated for it. Do not plan on a pickup and a tag trailer.
| Year | 2020 |
|---|---|
| Make / model | Bobcat E85 |
| Condition | Pre-owned |
| Engine hours | 2,394 |
| Engine power | 49.1 kW, Tier 4, diesel |
| Max governed speed | 2,100 rpm |
| Operating weight | 8,608 kg (8.6 t class) |
| Max dig depth | 4.7 m |
| Max reach at ground level | 7.2 m |
| Max dump height | 5 m |
| Bucket digging force | 72,368 N |
| Arm digging force | 36,711 N |
| Aux hydraulic flow | 95 l/min at 209.95 bar |
| Travel speed | 4.7 km/h high, 2.7 km/h low |
| Boom swing | 64° left, 61° right |
| Dimensions | 6,248 mm L x 2,210 mm W x 2,535 mm H |
| Fuel capacity | 115.8 l |
| Stock number | E413714 |
Available now. Flat $550 freight anywhere in the continental US, and 30 days to return it from the date it lands.
