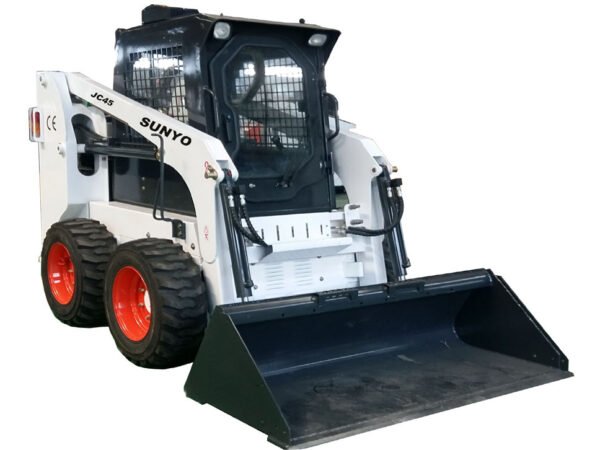

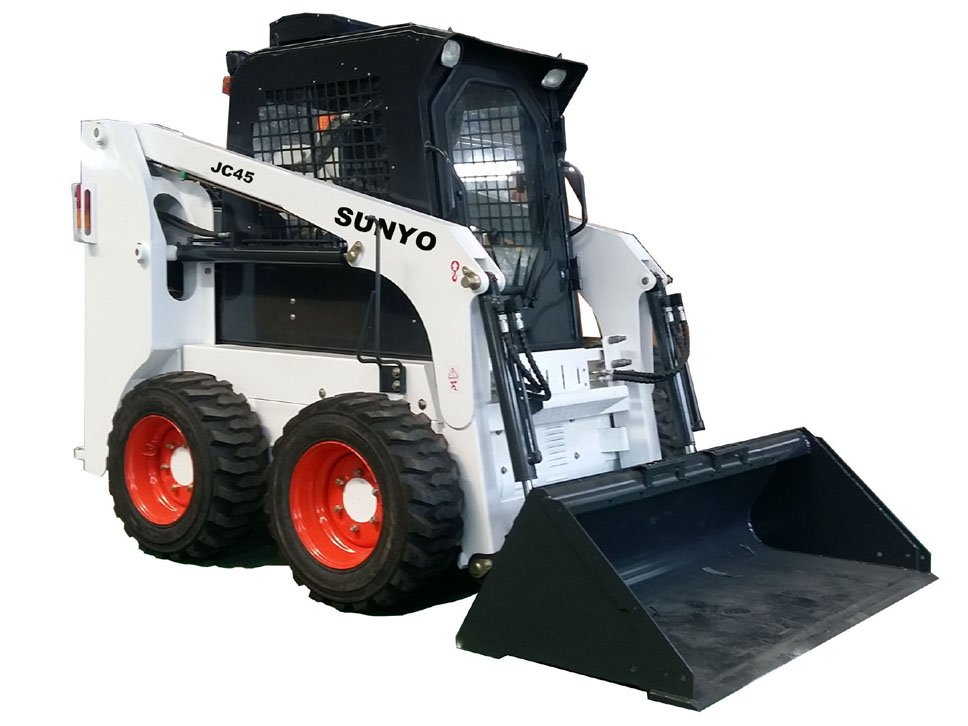

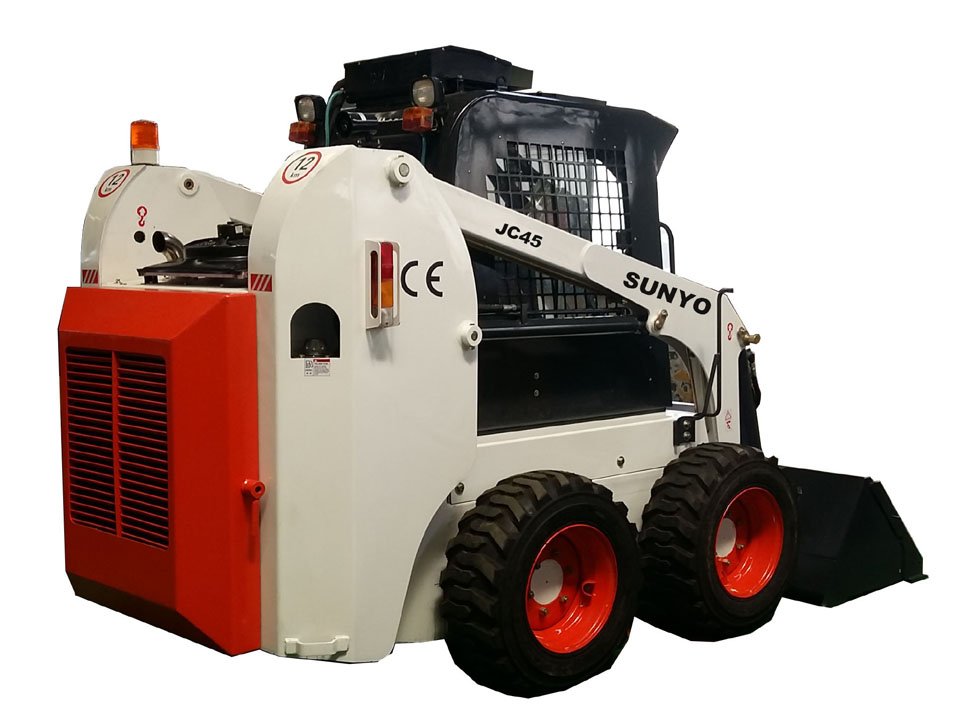

Rated load is 1,543 lb and the machine weighs 5,952 lb. That ratio puts the JC45 in the mid-frame class, which is the size most landscape and small site crews actually want. It will handle a 4-in-1 bucket, a pallet fork and a hydraulic breaker without feeling light in the front end.
Width over the standard 10-16.5 tires is 67.72 in. The standard bucket is 68.5 in. That is the number to write down, because it decides whether the machine fits between a house and a fence line. Ground clearance is 7.09 in.
Reach and lift
Maximum operating height is 156.69 in, bucket pin height 121.26 in and discharge height at full lift is 93.70 in with 27.6 in of reach past the pivot. That clears the side of a standard dump body. It will not clear the side of a tandem, so plan on loading over the tailgate.
Cab ceiling height is 84.25 in. Length is 103.94 in bare and 134.65 in with the bucket on, which matters when you are working out whether it fits on a 16 ft trailer deck with room for a second attachment.
The honest limitation
Auxiliary flow is 62.5 L/min, or 16.51 gpm. That is standard flow. It runs augers, breakers, grapples and brooms perfectly well. It will not run a forestry mulcher or a cold planer, and no amount of engine rpm changes that. If mulching is on your list, look at the JC100 with the high-flow circuit instead.
| Rated load | 700 kg (1,543 lb) |
|---|---|
| Rated power | 37 kW (49.6 hp) |
| Operating weight | 2,700 kg (5,952 lb) |
| Hydraulic flow | 62.5 L/min (16.51 gpm) |
| Max speed | 12 km/h (7.46 mph) |
| Bucket volume | 0.4 m³ (14.13 cu ft) |
| Max operating height | 3,980 mm (156.69 in) |
| Discharge height | 2,380 mm (93.70 in) |
| Vehicle width | 1,720 mm (67.72 in) |
| Ground clearance | 180 mm (7.09 in) |
| Tires | 10-16.5 |
| Fuel tank | 70 L (18.49 gal) |
| Stock number | ACM-28741 |
Flat $550 freight anywhere in the continental US. Thirty days from delivery to send it back.
